| Ham Radio Museum | ||
|---|---|---|
| Hallicrafters Transmitters | ||
 |
Hallicrafters HT-9 Modes: AM/CW Bands: 80, 40, 20, 10 Meters (plug-in coil set + band switch) Power Output: 75W-AM, 100W-CW VFO: No Power Supply: Internal Final Tube(s): 814 Modulator Tube(s): 4 ea. 6L6 New Price/Year: $199.99-$225/1940-1948 Size: 12.5"h x 29.25"w x 20.5"d Approx. Weight: 125 lbs |
|
 |
Hallicrafters HT-20 Modes: AM/CW Bands: 1.79 Mc - 30 Mc (full bandswitching 160-10 meters) Output Power: 100W-AM, 115W-CW VFO: No Power Supply: Internal Final Tube(s): 4D32 Modulator Tube(s): 2ea. 807 (class ab2) New Price/Year: $450/1952-1954 Size: 12.5"h x 20.0"w x 17.25"d Approx. Weight: 125 lbs |
|
 |
Hallicrafters HT-30 Modes: SSB/AM/CW Bands: 80, 40, 20, 10 Meters (full bandswitching) Output Power: 35W Peak-SSB, 40W-CW, 9W-AM VFO: Yes Power Supply: Internal Final Tube(s): 2ea. 807 SSB Method: 50 kc filter New Price/Year: $350-$495/1955-1957 Size: 9.0"h x 18.5"w x 13.0"d Approx. Weight: 51 lbs |
|
 |

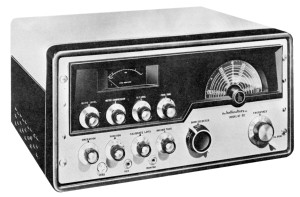

Hallicrafters HT-32/32A Modes: SSB/AM/CW Bands: 80 - 10 Meters (full bandswitching) Input Power: 144W PEP-SSB Output Power: 70-100W-SSB, CW; 17-25W-AM VFO: Yes Power Supply: Internal Final Tube(s): 2ea. 6146 SSB Method: Crystal Filter (4.95 MHz) New Price/Year: $675/1957-1959 (HT-32) New Price/Year: $695/1959-1961 (HT-32A) Size: 10.5"h x 20.0"w x 16.0"d Approx. Weight: 85 lbs |
|
 |
Hallicrafters HT-32B Modes: SSB/AM/CW Bands: 80 - 10 Meters (full bandswitching) Output Power: 70-100W SSB, CW; 17-25W-AM VFO: Yes Power Supply: Internal Final Tube(s): 2ea. 6146 SSB Method: Crystal Filter (4.95 MHz) New Price/Year: $725/1961-1964 Size: 10.5"h x 20.0"w x 16.0"d Approx. Weight: 85 lbs |
|
 |
Hallicrafters HT-37 Modes: SSB/AM/CW Bands: 80 - 10 Meters (full bandswitching) Output Power: 70-100W SSB, CW; 17-25W-AM VFO: Yes Power Supply: Internal Final Tube(s): 2ea. 6146 SSB Method: Phasing New Price/Year: $450-$495/1959-1963 Size: 9.5"h x 19.25"w x 16.0"d Approx. Weight: 80 lbs |
|
 |
Hallicrafters HT-44 Modes: SSB/AM/CW Bands: 80 - 10 Meters Input Power: 200W-SSB, CW; 50W-AM VFO: Yes Power Supply: External (PS-150-120AC) Final Tube(s): 2ea. 6DQ5 SSB Method: Phasing New Price/Year: $380-$395/1963-1965 Size: 7.25"h x 15.0"w x 13.0"d Approx. Weight: XX lbs |
|
 |
Hallicrafters HT-46 Modes: SSB/CW Bands: 80 - 10 Meters Input Power: 180W PEP-SSB, 140W-CW VFO: Yes (transceive w/SX-146) Power Supply: Internal Final Tube(s): 6HF5 SSB Method: Crystal Filter (9 MHz) New Price/Year: $295-$349.95/1965-1968 Size: 6.0"h x 11.0"w x 13.0"d Approx. Weight: 26 lbs |
|
 |
Hallicrafters HT-40 Modes: AM/CW Bands: 80 - 6 Meters Output Power: 30W peak-AM, 35W-CW VFO: No Power Supply: Internal Final Tube(s): 6DQ5 Modulation Method: Controlled Carrier New Price/Year: $89.95 kit, $109.95 wired/1960-1964 Size: 8.0"h x 13.5"w x 6.5"d Approx. Weight: 19 lbs |
|
|
||
